Show Site With Android Webview

ANDROID PROGRAMMING : DISPLAY WEB PAGES WITH WEBVIEW

Introduction to WebView

How to Create a Simple WebView Android Programming :

Create a New Project

Name your project whatever you like. Use at least versionAndroid GingerbeardAPI 11

Create Project

2. We makeUser Interfaceor how it looks, go tores/layout open activity_main.xml

Edit Main Activity XML

Then paste the following script on theactivity_main.xm l sectionXML

xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical"
android:paddingBottom="@dimen/activity_vertical_margin"
android:paddingLeft="@dimen/activity_horizontal_margin"
android:paddingRight="@dimen/activity_horizontal_margin"
android:paddingTop="@dimen/activity_vertical_margin"
tools:context="com.example.Learnmultibannerhelmy.MainActivity" >

// to show text view

android:id="@+id/textView1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="HELMY KURNIAWAN"
        android:textAppearance="?android:attr/textAppearanceMedium" />

android:layout_width="match_parent"
android:layout_height="wrap_content"
        android:orientation="horizontal" >

// to create button

android:id="@+id/button1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_weight="1"
        android:text="" />

android:id="@+id/button2"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_weight="1"
        android:text="Helmy Misteri" />



// to display the website

android:id="@+id/webView1"
android:layout_width="match_parent"
android:layout_height="match_parent"
/>

Here's how it looks inmode Activity_main.xml :

XML Mode

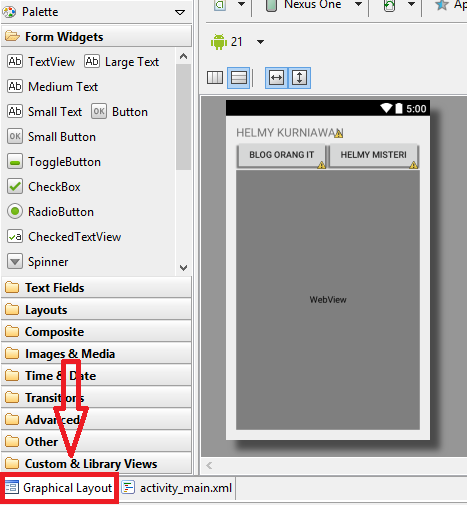

Here's how it looks inGraphical Layout mode, I deliberately keep it simple:

Graphic Display

package com.example.Belajarmultibannerhelmy;

import android.support.v7.app.ActionBarActivity;
import android.os.Bundle;
import android.os.Bundle;
import android.view.Menu;
import android.view.MenuItem;
import android.view.KeyEvent;
import android.view.View;
import android.webkit.WebView;
import android.webkit.WebViewClient;
import android.widget.Button;

public class MainActivity extends ActionBarActivity
WebView webView;
Button button1, button2;
@Override
protected void onCreate(Bundle savedInstanceState)
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);

webView = (WebView)findViewById(R.id.webView1);

  //Enable zoom in and zoom out controls on webview

webView.getSettings().setBuiltInZoomControls(true);

  //Activate java script on the opened web page

webView.getSettings().setJavaScriptEnabled(true);
button1 = (Button)findViewById(R.id.button1);
button2 = (Button)findViewById(R.id.button2);
button1.setOnClickListener(btnClick);
button2.setOnClickListener(btnClick);

View.OnClickListener btnClick = new View.OnClickListener()
@Override
public void onClick(View v)

              //Load URL according to clicked button

switch(v.getId())
case R.id.button1 :
webView.setWebViewClient(new ClientWebView());
webView.loadUrl("http://helmykkediri.blogspot.co.id" );

breaks;
case R.id.button2 :
webView.setWebViewClient(new ClientWebView());

            //load the web page contained in the android application

webView.loadUrl("http://mas-helmy.blogspot.co.id"); breaks;


;

           //display the previous web page if any (according to browsing history) when the back button is pressed

public boolean onKeyDown(int keyCode, KeyEvent event)
if((keyCode == event.KEYCODE_BACK) && webView.canGoBack())
webView.goBack(); return true;

return super.onKeyDown(keyCode, event);


           //forces to show the destination web page to Web View, not to Android's default browser

private class ClientWebView extends WebViewClient

@Override
public boolean shouldOverrideUrlLoading(WebView view, String url)
return false;

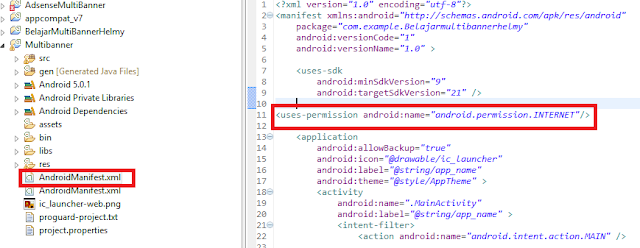

Internet access

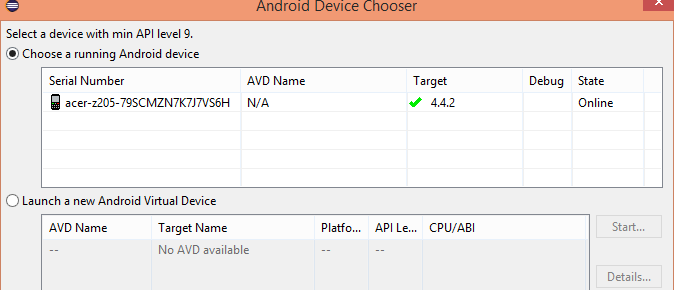

Run Via USB

The result of the WebView that we have created is more or less like this:

1

2

If you want to download the raw versionbefore compilinginto the Android APK application file, please download via the link below:
Or please download the project that has been compiled into the APK, you just have to run your Android Smartphone:
